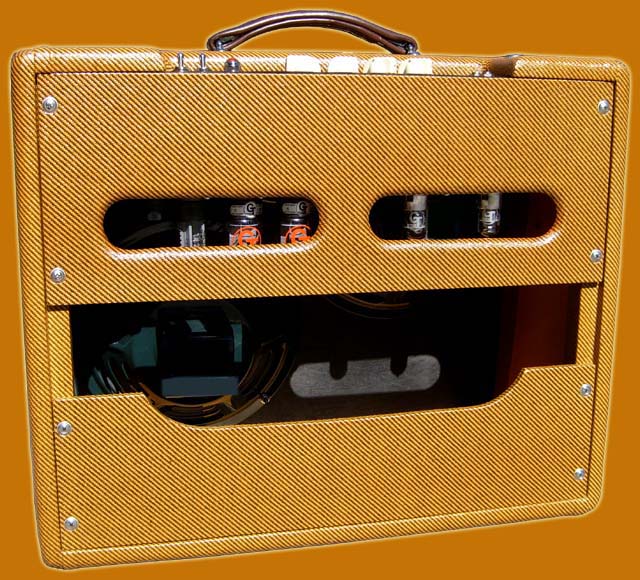

The HarpGear HG35

HarpGear HG35

HarpGear HG35



The HarpGear HG35:

The HarpGear HG35 is the updated version of the HG30.  It now is a 2x10" amp based on the same circuit as the HG30 with 5 more watts of power for a total of 35W.  The HarpGear 35 is HarpGear's next step in building a mid sized amp which achieves 35W using a cathode bias 6L6 setup.  This amp is setup specifically for harmonica and uses all of our standard harp amp modifications we have become known for.  This amp was designed to add flexibility to our amp line and allow you to play in more medium sized venues with the confidence of knowing you won't need to mic the amp or connect the line out to the sound board.  The standard HarpGear 35 uses two 10"Weber Red Custom made Alnico 30W 8ohm speakers built just for us with one 12AX7 and one 12AT7 preamp tube 2- 6L6 power tubes and 1-5AR4 rectifier tube.   The amp has three adjustable tone controls being Bass, Middle and Treble.  This amp  has an oversized output transformer like the other amps and even more great bass to really accentuate those low notes while you're playing.  The tube configuration for this amp is as follows:(1)5AR4  (2) 6L6 power tubes (1) 12AX7 (1) 12AX7WC preamp tube.  This amp is 18"H X 22"W x 9.5"D and weighs 34#.  This amp will generate 35 watts of power which comes across loud.  This amp is available in tweed or tolex and we can offer custom colors for tolex.

Price:
$1450 120V US / Canada
$1490 240V Export



All HarpGear Amplifiers include:

-Solid pine finger jointed cabinet.

-Solid 3/8" Baltic birch baffle for the best sound reproduction.  The baffle acts just like the sound board on a guitar and unlike particle board baffles which absorb the tone the Baltic birch reproduces your tone accurately.

-High quality transformers for a truly awesome sound as well as oversized transformers to add more honk to your amp and give you plenty of sweet round distortion.


-Mil Spec G10 Garrolite eyelet boards to prevent both tweed disease and moisture absorption common on pressed fiber boards which produces false capacitance and causes crackle and hum.  You will not have that problem with our boards and they will last a lifetime.

-Highest quality components including Sprague Atoms capacitors, Xicon Capacitors, Sprague Orange Drop, IC or Mallory 150 tone caps, phenolic sockets, switchcraft jacks and custom transformers.

-All amplifiers are hand wired one at a time with the utmost attention to detail.  All component leads are straightened and cleaned before the are soldered to the G10 board.

-Values of components are increased in key areas to make the amplifier more responsive with all the bass and crunch a harp player needs.

-Weber VST speakers and Jensen vintage speakers.

-An additional line out jack to run to the PA so you will never have a problem being heard over the rest of the band.  You can still use your amp as a monitor to hear yourself while plugged into the PA.  The line out can also be used to record directly into your computer line in or into a sound board.



Please feel free to contact me with any questions you may have.
